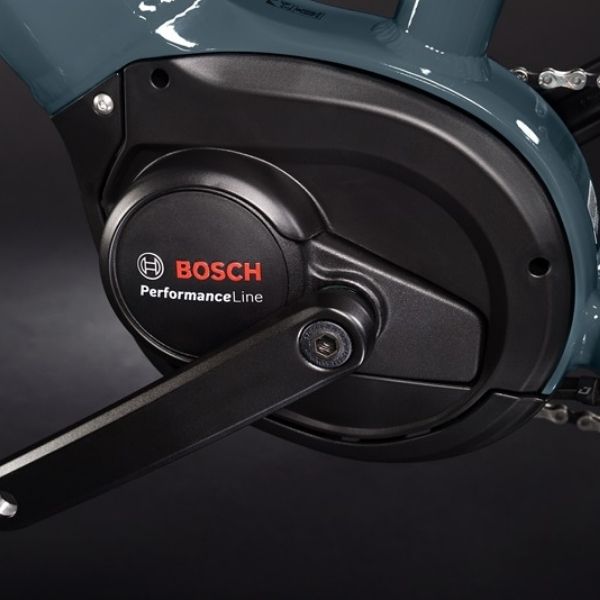

ENGINE Bosch, Performance Line , 250W, 65 Nm, 25 km/h
-

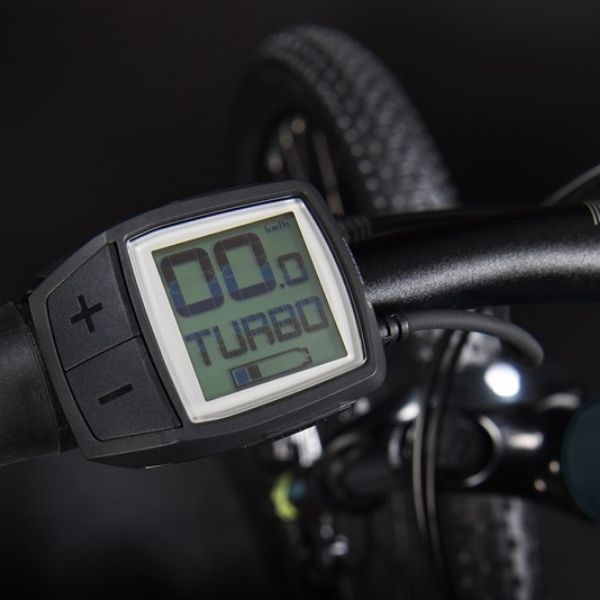

DISPLAY Bosch, Purion
-
BATTERY Bosch, PowerTube, 500 Wh
-
FRAME FAMILY Haibike, HardNine Gen3 Intube, Aluminium 6061
-
FORK SR Suntour, XCM32 Boost DS, Steel spring/oil, Travel= 120 mm, Aluschaft 1 1/8 - 1 1/2" tapered, 15 x 110mm thru-axle Boost
-
CRANK ARM Haibike, forged, Aluminium
-

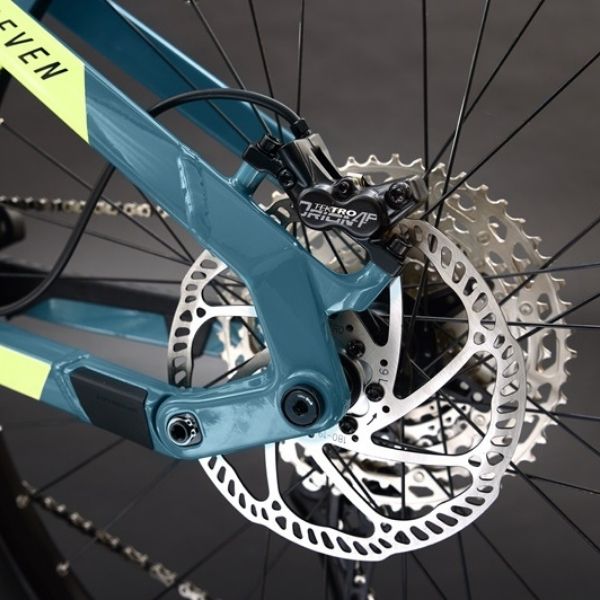

BRAKE (FRONT) Tektro, M275, 180 mm, 2-piston disc brake
-
BRAKE (REAR) Tektro, M275, 180 mm, 2-piston disc brake
-
TUBE Presta valve
-
RIM Schürmann, Yak25, with eyelets, hollow rim, Aluminium
-
CLAMPING RING Quick release, 34.9 mm
-

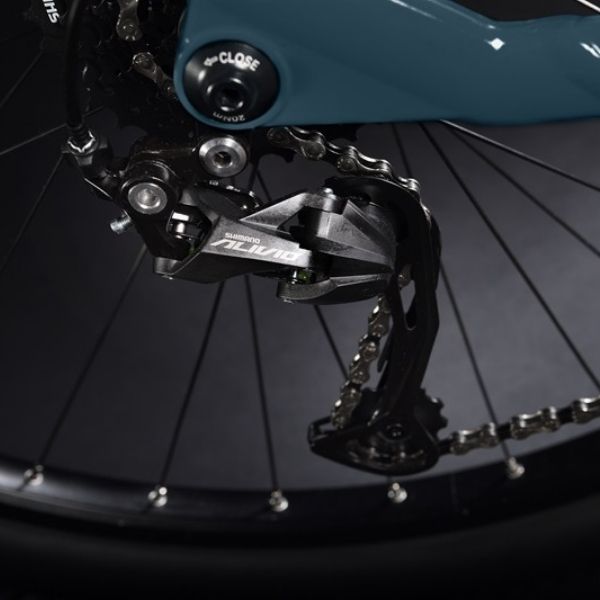

REAR DERAILLEUR Shimano, Alivio M3100
-
SHIFT LEVER Shimano, Alivio M3100, Trigger switch, 9 Speed
-
BOTTOM BRACKET Integrated in the motor
-
SPROCKET Shimano, HG200, 11 - 36 teeth
-
CHAIN KMC, e9S
-
CHAINRING Steel, 38 teeth
-
BRAKE LEVER Tektro, M275, Aluminium
-
BRAKE DISC (FRONT) Tektro, TR180
-
BRAKE DISC (REAR) Tektro, TR180
-
TYRE WTB, Ranger Comp, 55-622, 29" x 2.30"
-
FRONT WHEEL HUB Haibike, Alu Nabe, 6-bolt standard
-
REAR WHEEL HUB Haibike, Alu Nabe, 6-bolt standard
-
SPOKES Sapim, Leader, Black
-
HANDLEBAR XLC, Topflat, 720 mm
-
GRIPS Haibike, MTB grips
-
STEM XLC, Alu, A-head
-
HEADSET Feimin, A-Head Tapered, Ball bearing
-

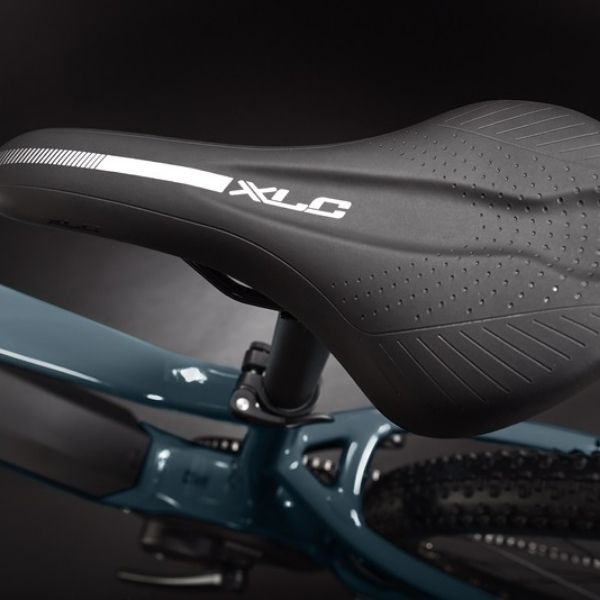

SADDLE XLC, MTB
-
SEAT POST XLC, Aluminium, Patent, 31.6 mm
-
PEDALS Freeridepedal , Aluminium, with Reflector,
-
PERMITTED TOTAL WEIGHT 120.0 kg
